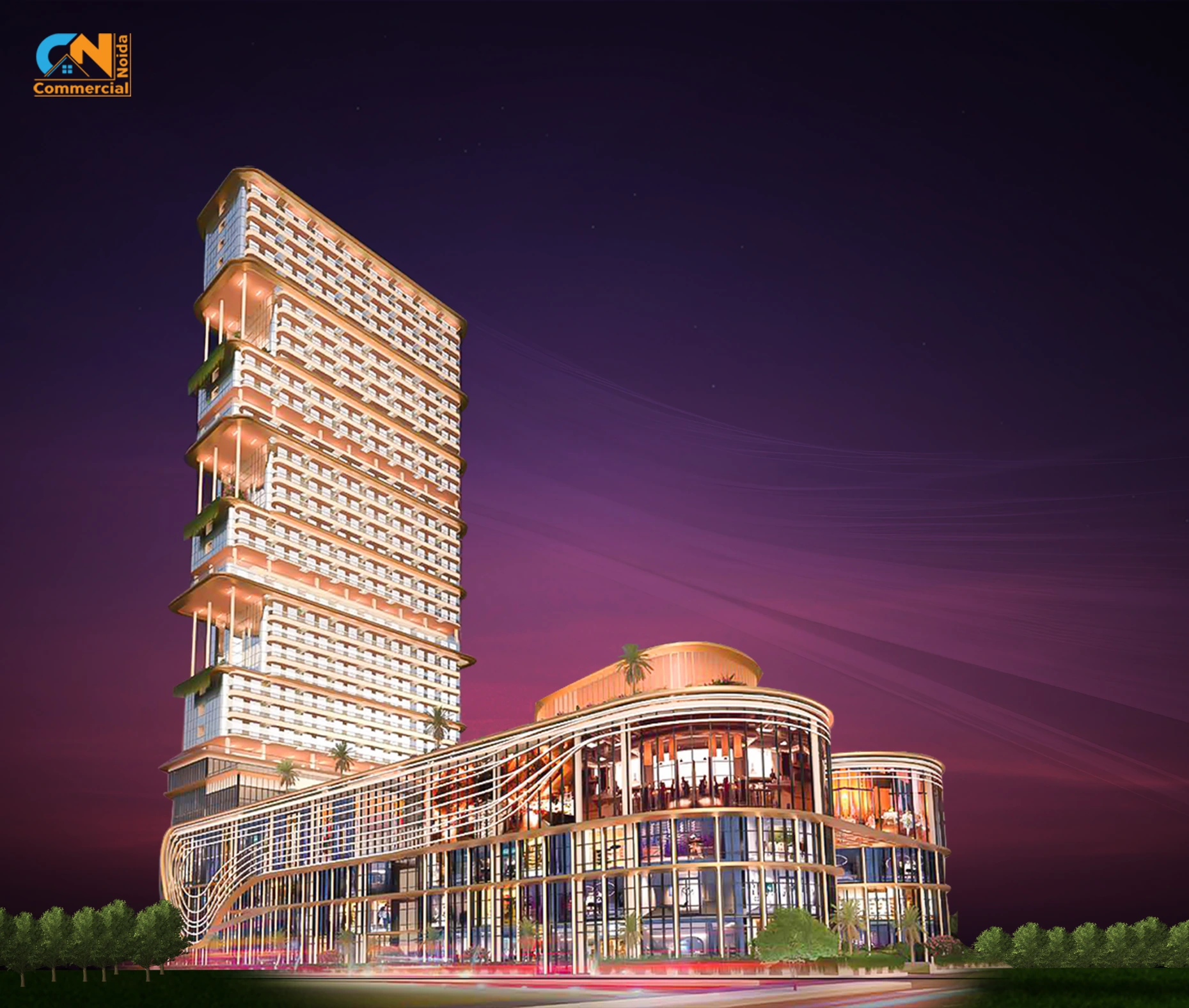

Purvanchal Skyline Vista

Description

Specification

PURVANCHAL SKYLINE VISTA SPECIFICATIONS

Structure

The building features an RCC-framed structure, designed with consideration for the safe zone as stipulated by the applicable building code.

Finishes External Facade

The appropriate finish includes a mix of glass with double glazing/stone or tiles ACP sheets, and external paint.

Flooring

1. Atrium: Italian marble/granite or superior-quality glazed vitrified tiles.

2. Entrance and Lift Lobbies: Italian marble\granite or glazed vitrified tiles in the main lobbies.

3. Basement: concrete with non-metallic floor hardener/IPS or Kota stone.

4. Common Toilets: Floors and Walls in Marble/Granite Superior Quality Glazed Vitrified Tiles and

   Anti-Skid Ceramic Tiles Chinaware and CP fittings of the brands Kohler/Duravit/Roca/Vetra/ Jaguar or equivalent.

Common Lobbies Area

Marble or granite flooring/superior-quality vitrified tiles and plastic emulsion paint.

Retails Shops / Ultra luxury office suites

The units will be delivered as bare shells with plastered walls and vitrified tiles, providing a clean and versatile canvas for residents to personalize according to their preferences.

Electrical Power Back - up

100% power backup for common areas is available through generators with PLC-based auto-synchronization load management.

Within the retail stores and offices, there will be a one-number SDB (Sub-Distribution Board) with submain wire and a one-number ONT (Optical Network Terminal) box with two-core optical fibre only.

Load available for Allottee /User

The system has been planned to provide an adequate load.

Critical / Emergency Lighting

Emergency lights have been provided for all common areas, staircases, escape routes, lift lobbies, basement driveways, utility rooms, etc.

Elevator Services:

From the 3rd basement to the 36th floor:

• Six standard passenger elevators are available, providing access from the 3rd basement and continuing all the way up to the 36th floor for ultra luxury office suites. Additionally, there is one stretcher elevator dedicated to medical emergencies or large equipment transportation from the 3rd basement andcontinuing all the way up to the 36th floor.

From the 3rd basement to the 5th floor:

• Six elevators are available from the 3rd basement to the 5th floor, including two service lifts for catering to all commercial spaces. Additionally, there is one escalator providing access from the 1st basement up to the 4th floor, serving both upward and downward directions for catering to all commercial spaces.

HVAC system

1. The building is equipped with a water-cooled chiller and heating systems, providing centralized air conditioning for optimal comfort and climate control throughout the premises.

2. Common Area Maintenance (CAM) charges are billed individually to each allotee or tenant.

3. Each unit is provided with an individual indoor ductable unit of suitable capacity. Ducting inside

   the unit is to be done by the allotee(s) or tenant at their own cost.

4. The building is equipped with an emergency smoke extraction system in basements and all

   common areas, adhering to established norms.

Security

1. Electronic Surveillance: The complex is 100% secure, featuring state-of-the-art perimeter video surveillance and CCTV systems.

2. Trained guards will be stationed at the entrance gate and the ground-floor reception lobby
   24 hours a day, 7 days a week, ensuring continuous security surveillance and assistance for safety.

Fire Fighting

1. Staircases: The ultra luxury office suites have access to one main staircase and one fire escape staircase at each floor level, beginning with the 3rd basement and continuing all the way up to the 36th floor. In addition, there is a main staircase and a fire escape staircase located on each floor level, beginning with the 3rd basement and continuing all the way up to the 5th floor, catering to all other commercial spaces.

2. Travel Distance: The maximum travel distance is 30 meters.

3. Wet Riser/Hose Reels: A wet riser/downcomer system with fire hose cabinets is installed at

   each emergency fire escape staircase.

4. Sprinklers: Automatic upright/pendent/sidewall sprinklers are provided on each floor, adhering

   to the National Building Code of India (2016). There is a provision for allottees and tenants to install their independent sprinkler lines after false ceilings in each unit or shop at their own cost, as per norms (inside the units).

5. Intelligent Fire Detection and Alarm System: The entire building is equipped with an Intelligent Fire Detection and Alarm System.

6. Emergency Voice Evacuation System: An Emergency Voice Evacuation System is in place.

Water Supply

A water supply point will be available through overhead tanks for each unit, facilitated by a softening plant to ensure the water quality meets the desired standards.

Sewage

A sewage treatment and recycling plant are incorporated into the complex in accordance with established norms.

Parking

Parking space is available across three levels of basements with an installed mechanical car parking system.

Communication System

The building is outfitted with essential communication systems. Owners have the option to select broadband, fibre optic, landline systems, etc., to fulfil their communication needs on a chargeable basis.

EV Charging Station

EV charging facilities are available in all three basements, constituting 20% of the total number of parking spaces.

About Developer

An architect from Uttar Pradesh that ascended to the crown of unimaginable glory by demonstrating Quality & Commitment, Purvanchal Projects created edifices which represent a masterpiece. It is not just about building; they design and construct infrastructure conforming to the most stringent requirements of building quality and aesthetics.
Unexpected growth has been achieved during the course of thirty-nine years of existence and earned a reputation on the market with our impressive projects as well as timely delivery. We've worked hard towards making sure you are satisfied and are on the road to perfection since we believe it's not about the endpoint however the way you travel that will change the world.
